Ambient Lighting Solution

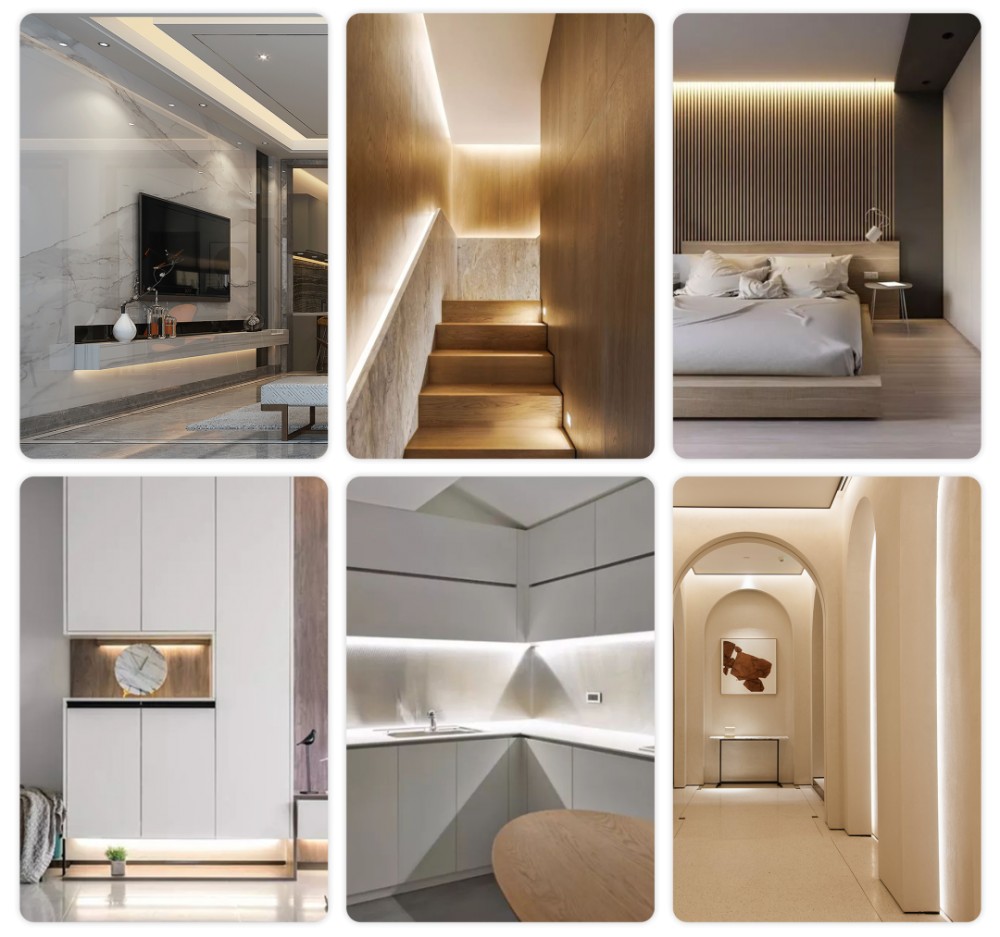

As night falls, cities become oceans of light — ambient LED strips are the secret behind that irresistible “mood”. Long-life (80–100 k hrs), ultra-energy-efficient, and eco-friendly, they’re now everywhere: entryways, living rooms, kitchens, bedrooms, stairs, corridors — creating unique décor while adding daily convenience.

Solution Overview

Kinetic Century’s ambient lighting solution uses the CI24R1 2.4 GHz wireless transceiver on both strip and controller/switch. Press a button or use an app → wireless command → strip instantly changes brightness, color, or scene (reading, movie, party, sleep, etc.).

Key Advantages

• Remote Control – Remote, timer, or smartphone app

• Dimming & Color Tuning – Perfect light for work, relaxation, or entertainment

• Smart Linkage – Sync with TV/PC backlight or other smart home devices for immersive atmosphere

Chip Highlights: CI24R1

• 2.4 GHz ISM band, up to +11 dBm TX power

• 400–500 m open-field range

• Only 2-wire SPI (saves GPIO)

• Integrated balun — ultra-simple RF circuit

• Shutdown current 2 µA

• Wide voltage 2.1–3.6 V & temperature –45°C to +125°C

• Tiny DFN8 2×2 mm or SOP8 packages

• Cost-effective drop-in alternative to SI24R1

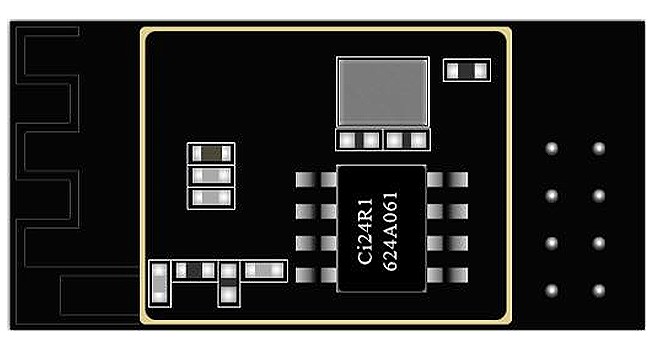

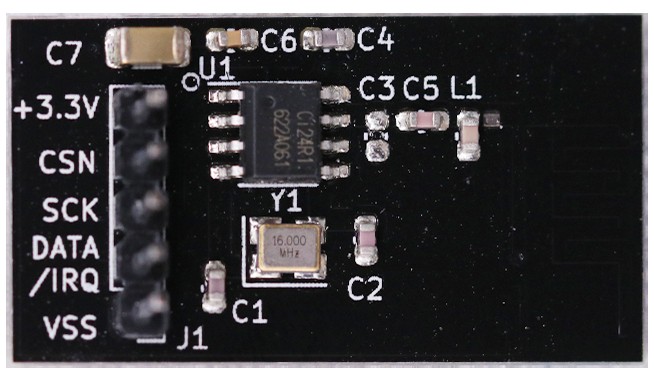

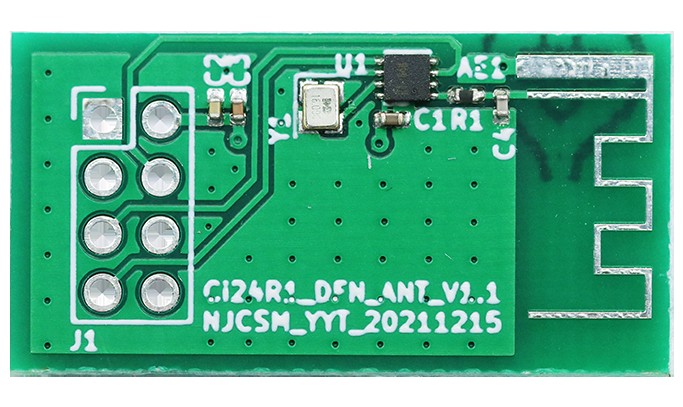

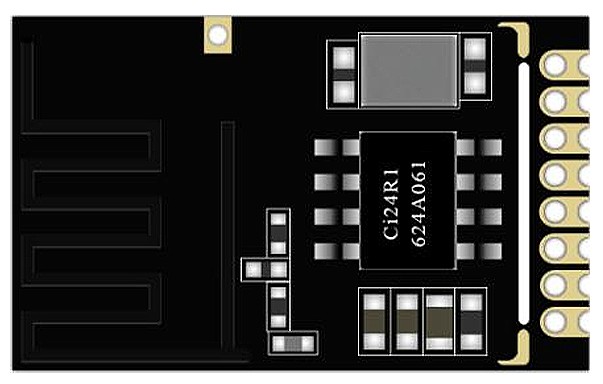

Available: CI24R1 demo boards & ready-to-use modules (with onboard antenna).

Turn any room into a mood masterpiece — effortlessly.
