DP32RF002 — Low-Power Sub-1GHz Transceiver SoC

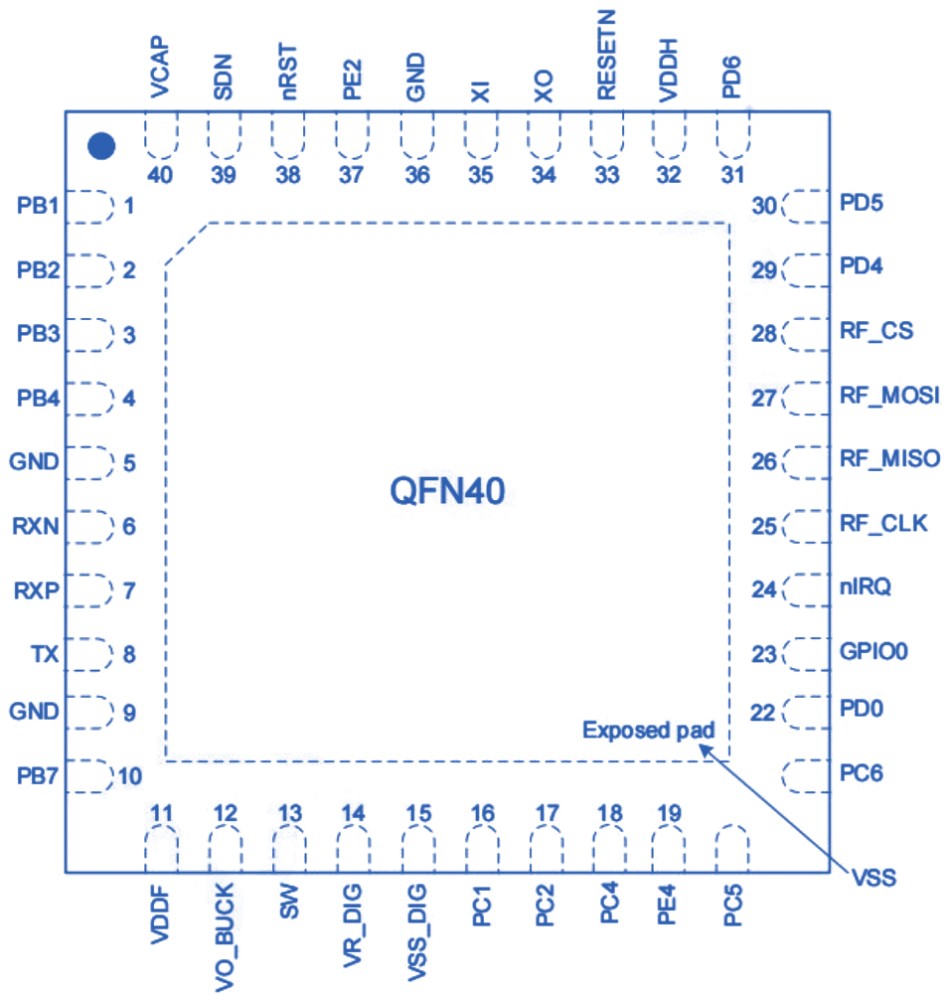

Overview

The DP32RF002 is an ultra-low-power, high-performance 32-bit SoC based on ARM Cortex-M0+ core, integrating a (G)FSK/OOK Sub-1GHz transceiver. Operating in 200–960 MHz, it supports flexible packet formats, auto-ACK/retransmit, frequency hopping, and FEC. Includes full RF TX/RX, synthesizer, and modem—requires only simple, low-cost peripherals for excellent performance.

Additional peripherals: CAN, 12-bit SAR ADC, UART, SPI, QSPI, I2C, LPTIMER, WDT, RC oscillators. Unique low-power design offers high integration, interference resistance, reliability, and ultra-low consumption. Supports Keil MDK with C/assembly development.

Key Features

Sub-1GHz RF Transceiver

• Frequency: 200–960 MHz

• Modulation: (G)FSK, OOK

• Data Rate: 0.1–300 kbps

• NRZ, Manchester, whitening, FEC

• Auto-ACK/retransmit, RSSI (0.5 dB), AGC/AFC

• Configurable packet handler, 128-Byte TX/RX FIFO

• TX Power: -20 to +18 dBm

• TX Current (@433.92 MHz, non-BUCK): 14 mA (0 dBm) to 58 mA (+18 dBm)

• RX Sensitivity (@433.92 MHz, non-BUCK): -127 dBm (0.1 kbps) to -93 dBm (300 kbps)

• RX Current: 6.5 mA (BUCK), 12 mA (non-BUCK)

• Shutdown: <10 nA

Processor & Memory

• 32-bit ARM Cortex-M0+, up to 32 MHz

• 16 KB SRAM, 64 KB eFlash

Interfaces

• 2× UART, 1× I2C (up to 1 Mbps), 1× SPI (16 Mbps), 1× QSPI, 1× CAN 2.0A/B (1 Mbps)

• Up to 17 GPIOs (8/4 mA drive)

Analog Peripherals

• 12-bit ADC (4 ch, 1 Msps), OPA, CMP, LVD/LVR

• Anti-tamper, CRC16-CCITT, 16-byte unique ID

Electrical

• Voltage: 1.8–3.6 V

• Temperature: -40–85°C

• ESD: ±2 kV (HBM)

Development

• UART bootloader, JTAG/SWD debug

• SDK, EVB, offline programmer

Applications

• Industrial sensing/control

• Security systems

• Automatic metering

• Wireless tags/access

• Remote controls/toys

• Smart traffic/cities/homes

• Smart locks, asset tracking, wireless monitoring
