Ebyte NRF24L01: The Ultimate Low-Cost 2.4GHz Wireless Module for DIY IoT Projects

In the world of wireless communication, the Ebyte NRF24L01 stands out as a reliable, affordable option for makers and engineers. Based on the proven NRF24L01+ chip from Nordic Semiconductor, Ebyte's modules offer seamless compatibility with enhanced features for long-range, low-power applications. Whether you're building remote sensors, RC cars, or smart home devices, understanding the Ebyte NRF24L01 is essential for your next project.

What Makes Ebyte NRF24L01 Special?

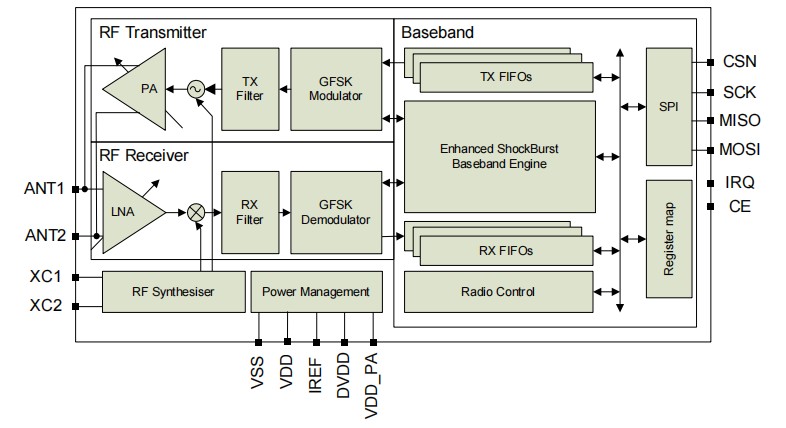

The Ebyte NRF24L01 is a compact transceiver module operating in the 2.4 GHz ISM band, supporting data rates from 250 kbps to 2 Mbps. It features Enhanced ShockBurst™ for automatic packet handling, retry, and acknowledgment, making it ideal for robust wireless links.

Key specs from the NRF24L01+ datasheet:

• Ultra-low power: 11.3 mA TX @ 0 dBm, 13.5 mA RX @ 2 Mbps, 900 nA power down

• Range: Up to 100 m+ with external antenna (Ebyte models often include PA for longer distances)

• MultiCeiver™: 6 data pipes for simultaneous multi-device communication

• On-chip voltage regulator: 1.9–3.6 V supply

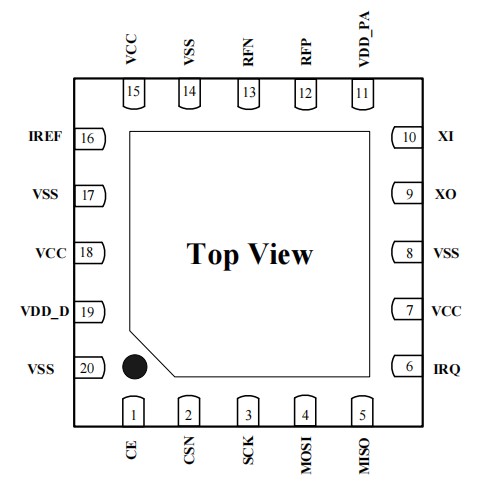

• Compact QFN20 package (4×4 mm) for tiny designs

Ebyte enhances this with their Si24R1 chip — a pin-compatible alternative to NRF24L01+ with improved cost-efficiency and similar performance (e.g., -83 dBm sensitivity @ 2 Mbps, +7 dBm TX).

Advantages of Ebyte NRF24L01 Modules

1. Cost-Effective: Ebyte offers NRF24L01-compatible modules at lower prices than originals, without sacrificing quality.

2. Long Range: With built-in PA in some models (e.g., Ebyte E01-ML01DP5), achieve 1 km+ line-of-sight.

3. Low Power Design: Perfect for battery-powered projects like wireless sensors or remotes.

4. Easy Integration: SPI interface, Arduino/Raspberry Pi libraries, and simple AT commands.

5. Versatility: Supports GFSK/FSK modulation, ARQ protocol, and RSSI for signal strength monitoring.

From the Si24R1 datasheet (Ebyte's compatible chip), it adds features like integrated LDO and wide voltage range (1.9–3.6 V), ensuring stable operation in diverse environments.

Popular Applications for Ebyte NRF24L01

• Wireless Peripherals: Keyboards, mice, game controllers (MultiCeiver™ for multi-device)

• Smart Home Automation: Remote sensors for temperature, humidity, motion

• RC Toys & Drones: Low-latency control with 2 Mbps mode

• Industrial IoT: Asset tracking, wireless data logging

• DIY Projects: Arduino-based weather stations, robot swarms

Ebyte's Ebyte NRF24L01 variants like E01-ML01S (SOP8) or E01-2G4M27D (high-power) make it easy to scale from prototypes to production.

How to Use Ebyte NRF24L01 in Your Project

1. Hardware Setup: Connect via SPI (MOSI, MISO, SCK, CSN) + IRQ/CE pins. Use 3.3 V logic.

2. Software: Libraries like RF24 (Arduino) or TMRh20/RF24 (C++) handle Enhanced ShockBurst™.

3. Configuration: Set channel (0–125), data rate, and power level for optimal performance.

4. Tips: Add external antenna for range; use CRC for error checking.

From NRF24L01 datasheet: Compatible with nRF24E1/E2 for legacy upgrades.

Why Choose Ebyte NRF24L01 Over Alternatives?

• Compatibility: Drop-in for Nordic NRF24L01+ — same pinout and protocol.

• Value: Ebyte's Si24R1-based modules offer similar specs (e.g., 1 µA shutdown, 130 µs startup) at lower cost.

• Support: Ebyte provides datasheets, demo code, and technical assistance.

For reliable, low-cost 2.4 GHz wireless, the Ebyte NRF24L01 is unbeatable. Shop Ebyte modules today and unlock endless IoT possibilities.
