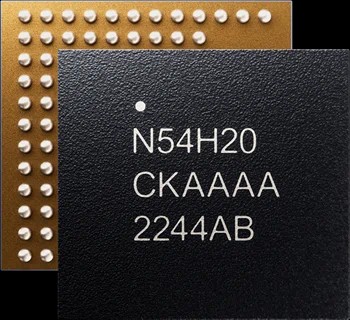

nRF54H20 – Low-Power Multi-Protocol Bluetooth SoC

Overview

The nRF54H20, the first in the nRF54H series, is a compact, ultra-low-power SoC with exceptional processing power, large memory, and advanced security. Its best-in-class multi-protocol radio and unique feature set enable innovative IoT product development.

Key Features

• Superior Processing and Memory: Multiple Arm Cortex-M33 processors and a RISC-V co-processor (up to 320 MHz), with double the processing power of the nRF5340. Features 2 MB NVM and 1 MB RAM, ideal for ML and sensor fusion, with lower power than external memory.

• Leading Efficiency: Validated by EEMBC ULPMark-CM, scoring 170 (515 CoreMark, max efficiency) and 132 (1290 CoreMark, max performance).

• Advanced Interfaces: Includes high-speed USB (480 Mbps), two I3C interfaces, CAN FD controller, 14-bit ADC, and multiple analog/digital interfaces.

• High Sensitivity Radio: -100 dBm RX sensitivity for 1 Mbps BLE, 10 dBm TX power, supporting Bluetooth 5.4, LE Audio, Mesh, Thread, and Matter. RX power is half that of nRF5340, ideal for wearables and earbuds.

• Cutting-Edge Security: PSA Certified Level 3, with secure boot, firmware updates, storage, tamper sensors, and crypto accelerator resistant to side-channel attacks.

• Integrated Solution: Replaces multiple PCB components (e.g., MCU, flash, radio), enabling smaller designs and lower costs with smaller batteries.

Applications

• Advanced wearables

• Smart home and Matter devices

• Healthcare

• LE Audio

• Industrial

• Gaming

• VR/AR

• Electric vehicles

Contact Us

For more chip details, contact us for one-stop solutions and comprehensive support to accelerate your product development.
