PHY6235 – Bluetooth Low Energy and Proprietary 2.4 GHz SoC
Overview
The PHY6235 is a high-performance, low-power SoC for Bluetooth Low Energy (BLE) and proprietary 2.4 GHz applications. It features a 32-bit RISC-V MCU (up to 48 MHz), 8 KB SRAM, 80 KB ROM, 256/512 KB Flash, and a multi-mode radio. With integrated application IP and serial peripheral IO, it supports secure BLE applications with minimal BOM cost.
Key Features
MCU and Memory:
32-bit RISC-V MCU (48 MHz) with JTAG
8 KB SRAM, 80 KB ROM, 256/512 KB Flash, 128-bit eFuse
IO and Interfaces:
Up to 21 GPIOs (configurable for serial interfaces, IO MUX, wake-up, interrupts)
6 PWM, 1 SPI master, UART, USB 2.0, DMA, NRZ LED driver
10-channel 800 kHz 12-bit ADC
Advanced control timer (16-bit up/down counter, 4 independent channels)
Timers and Clocks:
Watchdog timer, RTC
32 kHz RTC, power/clock/reset controller
Power Management:
1.6 μA (shutdown, IO wake-up), 3 μA (sleep with 32 kHz RTC)
RX/TX: 10 mA @ 3.3 V (0 dBm)
Operating voltage: 1.8–5.5 V
Bluetooth Low Energy:
Supports Bluetooth 5.4, master/slave modes
BLE 5.4 RF PHY: 1 Mbps/2 Mbps
Sensitivity: -96 dBm (1 Mbps), -93 dBm (2 Mbps)
TX power: -20 to +10 dBm (3 dB steps)
2.4 GHz Transceiver:
Proprietary rates: 31.25 kbps–1 Mbps
FSK with configurable Gaussian filter
Single-pin antenna, no RF matching
RSSI (1 dB resolution)
Security:
AES-128 encryption hardware
Operating Conditions:
Temperature: -40°C to +105°C

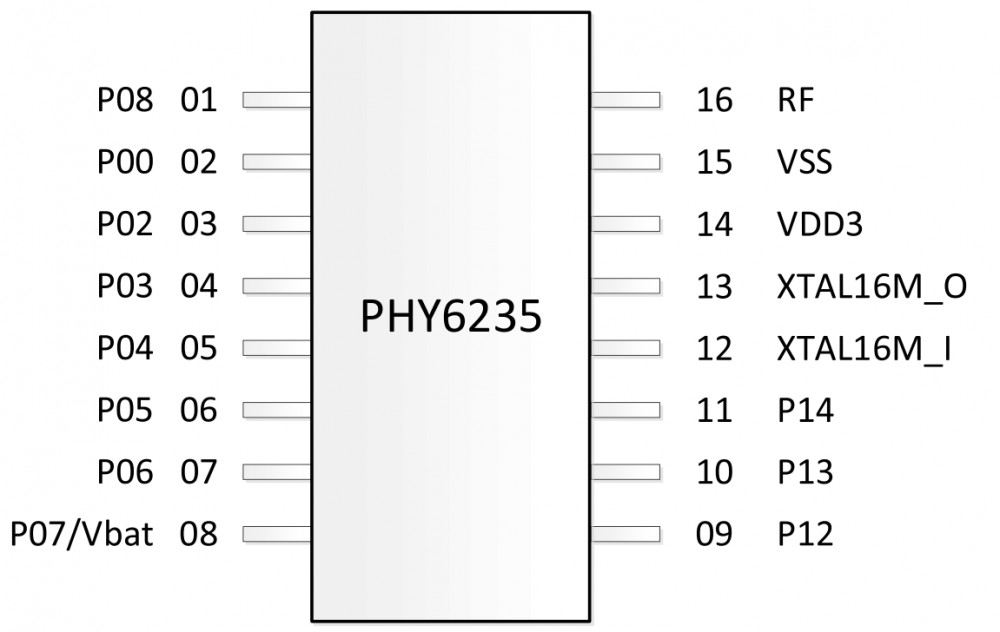

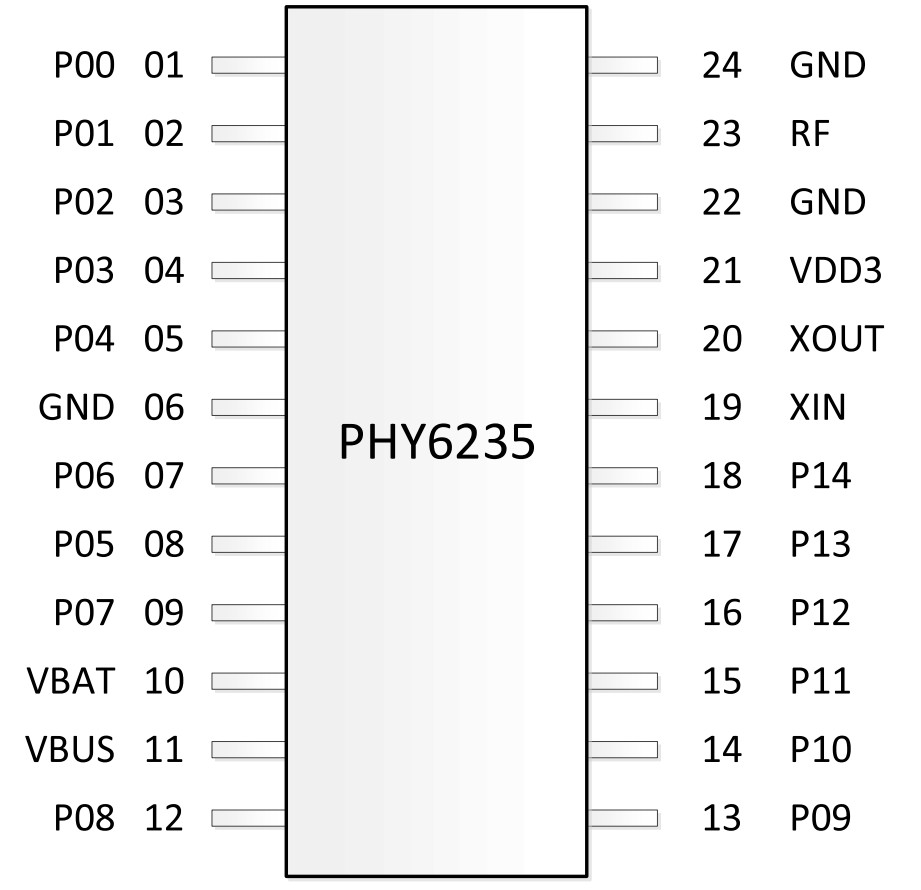

RoHS-compliant SSOP24/SOP16 packages
Core Advantages
Flexible, secure, high-performance, low-power SoC architecture
Proprietary full-stack communication solution
Multi-mode RF transceiver, average power <10 μA
Robust RF link budget for complex scenarios
Adaptive calibration for crystal frequency, temperature drift, aging
Industrial-grade high-temperature storage reliability
Anti-interference for complex power conditions
Minimal BOM: 1 μF capacitor + 16 MHz crystal
Contact Us
For more chip details, contact us for one-stop solutions and comprehensive support to accelerate your product development.
