Si24R1 vs NRF24L01: Which 2.4GHz Transceiver is Right for Your Project?
In the world of 2.4GHz wireless communication, the NRF24L01 from Nordic Semiconductor has long been the go-to choice for makers and engineers. However, the Si24R1 from Action Dynamic has emerged as a strong, cost-effective alternative. This article provides a detailed Si24R1 vs NRF24L01 comparison to help you decide which chip best fits your needs.
Core Specs Comparison
Parameter | Si24R1 (Action Dynamic) | NRF24L01+ (Nordic) |
|---|---|---|
Frequency Band | 2.4 GHz ISM | 2.4 GHz ISM |
Data Rates | 250 kbps / 1 Mbps / 2 Mbps | 250 kbps / 1 Mbps / 2 Mbps |
RX Sensitivity (@2 Mbps) | -83 dBm | ~ -82 to -85 dBm |
Max TX Power | +7 dBm | 0 dBm |
Shutdown Current | 1 µA | 0.9 µA |
Standby Current | 15 µA | 26 µA |
Startup Time | ≤130 µs | ~130 µs |
Supply Voltage | 1.9–3.6 V (I/O up to 5.25 V) | 1.9–3.6 V |
SPI Interface | 4-wire, up to 10 MHz | 4-wire |
Protocol Engine | Intelligent ARQ | Enhanced ShockBurst™ |
Package | QFN20 / COB | QFN20 |
Si24R1 vs NRF24L01: Nearly identical performance, but Si24R1 edges ahead in TX power and I/O voltage tolerance.
Advantages of Si24R1
Higher Transmit Power — +7 dBm vs 0 dBm → better range (400–500 m open field).
Wider I/O Voltage — Direct 5 V MCU connection, no level shifters needed.
Built-in High PSRR LDO + Crystal Compensation — Superior interference resistance and temperature stability.
Simpler Peripherals — Integrated balun matching for lower BOM cost.

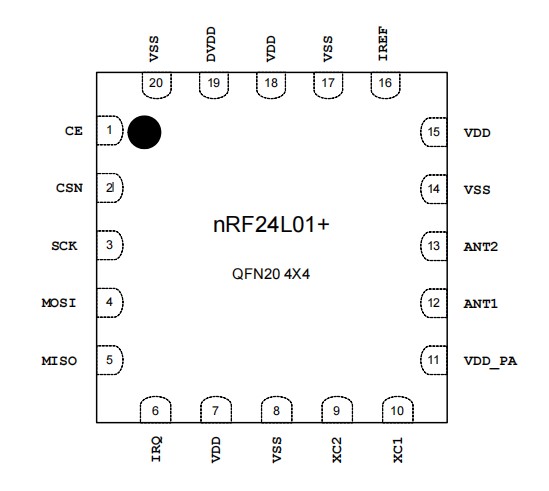

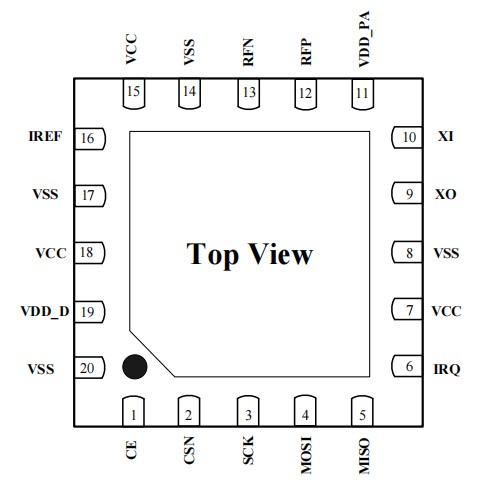

Full Compatibility — Pin-to-pin and protocol compatible with NRF24L01 — drop-in replacement.
Advantages of NRF24L01
Proven ecosystem with extensive libraries and community support.
Slightly lower shutdown current (0.9 µA vs 1 µA).
Enhanced ShockBurst™ for robust packet handling in noisy environments.
Application Scenarios
Both chips excel in:
Wireless mouse/keyboard
Remote controls & motion devices
Active RFID
Smart home/grid
Wireless audio/toys
Si24R1 shines in cost-sensitive or long-range projects, while NRF24L01 remains ideal for legacy or community-driven designs.
Conclusion: Si24R1 is the Superior Modern Alternative
In the Si24R1 vs NRF24L01 debate, Si24R1 offers better power, compatibility, and value without sacrificing performance. For new projects or supply chain diversification, Si24R1 is the clear winner.
