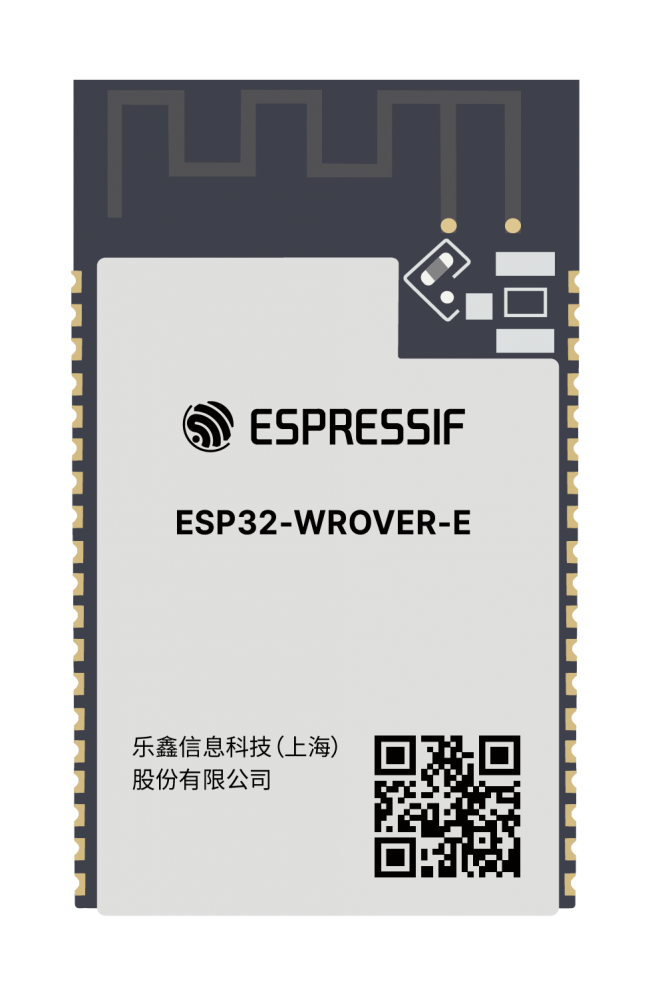

ESP32-WROVER-E-N16R2

Get $29 off orders over $999.

Manufacturer No:: ESP32-WROVER-E-N16R2

Manufacturer:: Espressif Systems

Product Category:: RF Transceiver Modules

Description:: ESP32-WROVER-E and ESP32-WROVER-IE are two powerful, generic WiFi-BT-BLE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding. ESP32-WROVER-E comes with a PCB antenna, and ESP32-WROVER-IE with an IPEX antenna. They both feature 4 MB (or 8 MB, 16 MB) external SPI flash and an additional 8 MB SPI Pseudo static RAM (PSRAM).

RoHs Status:: Lead Free / RoHS Compliant

Datasheet:: ESP32-WROVER-E-N16R2 Datasheet(PDF)

Get a quick quote? Send the BOM to sale25@dn-ic.com

Will got a quole by 6 PM(PT) on the second business day after sending.

Tnustea Delivery:

Pay With Ease:

Purchase Instructions

ESP32-WROVER-E and ESP32-WROVER-IE are two powerful, generic WiFi-BT-BLE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding. ESP32-WROVER-E comes with a PCB antenna, and ESP32-WROVER-IE with an IPEX antenna. They both feature 4 MB (or 8 MB, 16 MB) external SPI flash and an additional 8 MB SPI Pseudo static RAM (PSRAM).

At the core of the module is the ESP32-D0WD-V3 chip. The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz. The chip also has a low-power co-processor that can be used instead of the CPU to save power while performing tasks that do not require much computing power, such as monitoring of peripherals. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C.

TNT Express

Courier offering global express distribution, logistics and international mail service of parcels and freight.

TNT Express N.V., Thomas Nationwide Transport, is an international courier delivery services company with headquarters in Hoofddorp, Netherlands. The firm has fully owned operations in 63 countries and delivers documents, parcels and pieces of freight to over 200 countries.

DHL Express

International Shipping, on time, every time.

DHL Express is a division of the German logistics company Deutsche Post DHL providing international express mail services. Deutsche Post is the world's largest logistics company operating around the world. DHL is a world market leader in sea and air mail.

United Parcel Service

United Parcel Service of North America, Inc., typically referred to and branded as UPS (stylized as ups), is the largest shipment and logistics company in the world. The American global package delivery company is headquartered in Sandy Springs, Georgia, which is part of the Greater Atlanta metropolitan area. UPS delivers more than 15 million packages a day to more than 6.1 million customers in more than 220 countries and territories around the world.

Fedex Corporation

FedEx Corporation is an American global courier delivery services company headquartered in Memphis, Tennessee. The name "FedEx" is a syllabic abbreviation of the name of the company's original air division, Federal Express, which was used from 1973 until 2000.

Express Mail Service

EMS is an international postal Express Mail Service, for documents and merchandise, offered by postal operators of the Universal Postal Union. Approved by the State Council, China Postal Express & Logistics Co., Ltd. (“China Postal Express & Logistics”) was co-founded by China Post Group and provincial postal companies as a state-owned limited company in June 2010. The company is the largest integrated express and logistics service provider with the longest history of business operation, the widest coverage and the richest products in China.

Specifications

Product Category :	RF Transceiver Modules	Manufacturer :	Espressif Systems
Antenna Type :	PCB Trace	Current - Receiving :	-
Current - Transmitting :	-	Data Rate :	150Mbps
Frequency :	2.4GHz	Memory Size :	16MB Flash, 2MB SRAM
Modulation :	-	Mounting Type :	Surface Mount
Operating Temperature :	-40°C ~ 85°C	Package / Case :	38-SMD Module
Part Status :	Active	Power - Output :	20.5dBm
Protocol :	802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3	RF Family/Standard :	Bluetooth, WiFi
Sensitivity :	-97dBm	Serial Interfaces :	ADC, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART
Series :	ESP32	Utilized IC / Part :	ESP32-D0WD-V3
Voltage - Supply :	3V ~ 3.6V
